22810-00-05-10-02

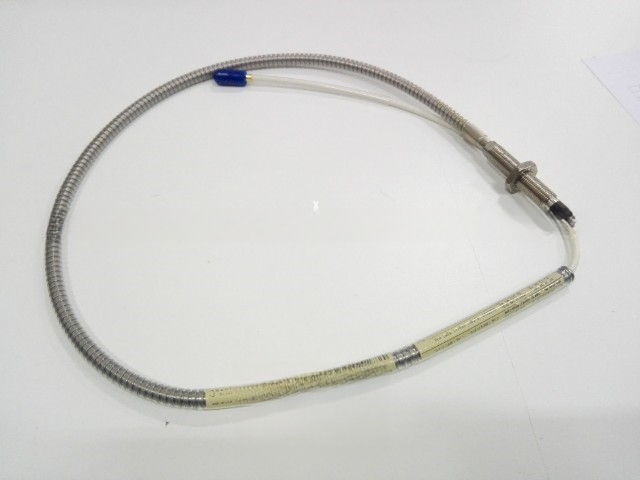

The Bently Nevada 22810‑00‑05‑10‑02 Proximity Probe is a top-tier, non-contact eddy current sensor tailored for real-time monitoring of shaft position and vibration in critical rotating machinery. Featuring a 5-meter probe tip and a 10-meter armored stainless steel cable, this model delivers exceptional durability and signal reliability even in severe industrial environments.

The probe is precisely machined from stainless steel to resist corrosion and mechanical wear and features a 3/8‑24 UNF threaded mount for secure, streamlined installation. It outputs a linear voltage signal proportional to shaft displacement, enabling predictive diagnostics and fault detection, ideal for industries such as power generation, petrochemicals, oil & gas, and heavy manufacturing.

Built for use in critical condition monitoring systems, this proximity probe utilizes advanced eddy current sensing technology to measure dynamic and static displacement. It delivers a highly linear voltage output directly proportional to the distance between the probe tip and the shaft surface, making it ideal for detecting early signs of machine faults such as imbalance, misalignment, and bearing wear.

Built for extreme operational conditions, the 22810‑00‑05‑10‑02 operates reliably in temperature ranges from –35 °C to +177 °C and delivers a measurement range of approximately 2 mm (80 mils). Fully compatible with Bently Nevada Proximity Transducer systems—including monitors, drivers, and data acquisition units—it ensures seamless integration and high fidelity performance across the entire monitoring workflow.

🔍 Key Features

• Model Number: 22810-00-05-10-02

• Probe Tip Length: 5 meters – ideal for extended reach in large equipment setups

• Cable Length: 10 meters – armored stainless steel cable for added durability and protection

• Probe Tip Diameter: 5 mm – ensures accurate and stable measurements

• Thread Size: 3/8-24 UNF – standard threaded mounting for secure installation

• Measurement Technology: Non-contact eddy current sensing for high-precision shaft displacement readings

• Output Signal: Linear voltage output proportional to the gap between the probe and target surface

• Measurement Range: Up to 2 mm (80 mils) – suitable for both static and dynamic monitoring

• Material: Corrosion-resistant stainless steel housing for enhanced longevity

• Operating Temperature: -35°C to +177°C – suitable for extreme industrial conditions

• Application: Used in turbines, compressors, pumps, and motors for vibration and position monitoring

• System Compatibility: Fully compatible with Bently Nevada proximitor systems and condition monitoring platforms
