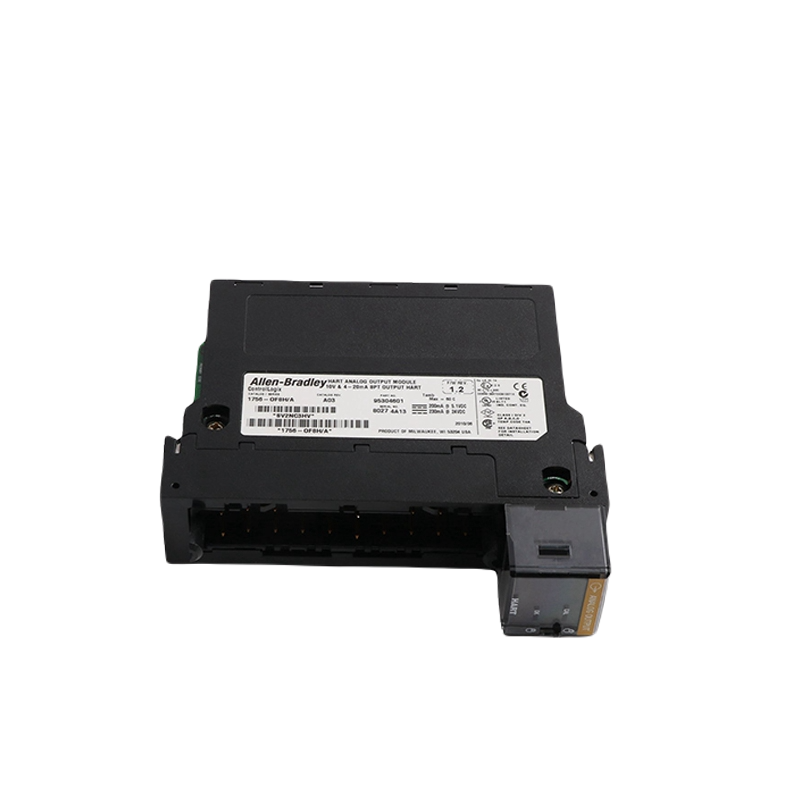

Allen-Bradley 1756-OF8 ControlLogix 8 Pt A/O I or V Module

The Allen Bradley 1756-OF8 is a high-performance 8-point isolated analog output module designed for use with ControlLogix 5580 controllers. Engineered to deliver precise and reliable analog output signals, this module supports both 4-20 mA and 0-10 VDC output ranges, making it ideal for a wide range of industrial automation applications.

Key Features

• 8 Isolated Analog Output Channels – Each channel operates independently for enhanced signal integrity.

• Flexible Output Ranges – Supports both 4-20 mA and 0-10 VDC signals for broad compatibility with field devices.

• High Output Capacity – Provides a maximum output current of 100 mA per channel.

• Electrical Isolation – Isolated from the controller to protect against ground loops and electrical noise.

• Optimized for ControlLogix 5580 – Seamlessly integrates with Allen Bradley’s advanced control systems.

Applications
The 1756-OF8 analog output module is ideal for applications requiring accurate and isolated analog signal output, such as:

• Process Control Systems

• Industrial Automation

• SCADA and DCS Integration

• Machine Control and Monitoring

• Signal Conditioning for Actuators and Drives

Technical Specifications

• Channels: 8 isolated analog outputs

• Signal Types: 4-20 mA or 0-10 VDC

• Max Output Current: 100 mA per channel

• Isolation: Channel-to-controller isolation for superior noise immunity

• Compatible Controllers: ControlLogix 5580 series

Benefits

• Precision Output Control – Ensures accurate analog signal delivery for process consistency

• Improved System Reliability – Electrical isolation enhances durability and reduces signal interference

• Versatile Integration – Works with a wide variety of industrial sensors, actuators, and control systems

• Reduced Downtime – High-quality design minimizes maintenance needs and increases uptime

• Cost-Efficient Automation – Combines flexibility and performance for long-term value

Conclusion
The Allen Bradley 1756-OF8 Analog Output Module delivers exceptional performance, flexibility, and reliability for modern industrial environments. Whether you’re managing process systems or machine automation, this module ensures accurate, isolated analog outputs and seamless integration with your ControlLogix 5580 controller platform.
