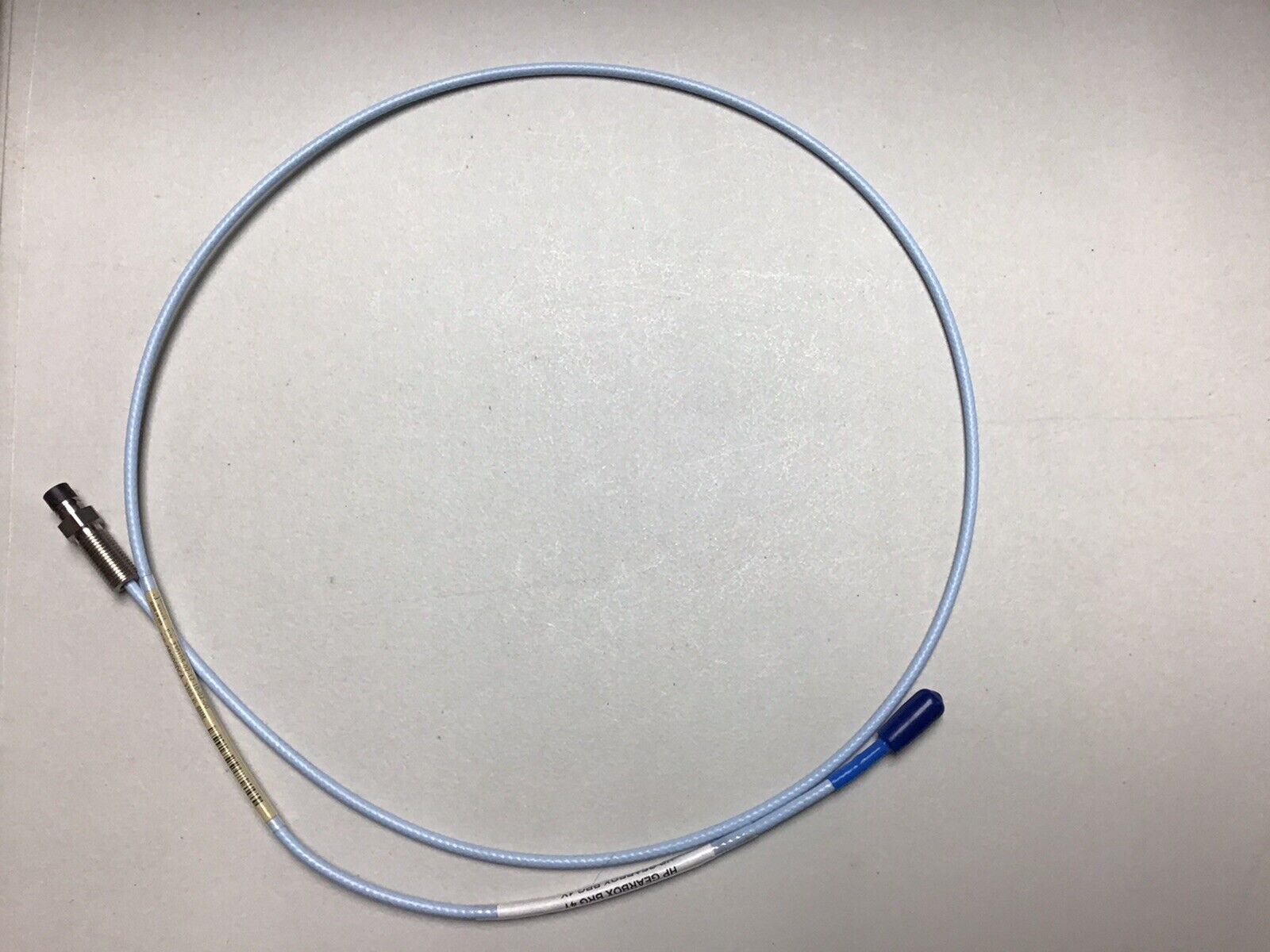

Bently Nevada 330105-02-12-10-02-00 3300 XL 8 mm

The Bently Nevada 330105-02-12-10-02-00 is a high-performance 3300 XL 8 mm Proximity Transducer System engineered for precise vibration and position measurements in industrial rotating machinery. This complete system includes a 3300 XL 8 mm proximity probe, a 3300 XL extension cable, and a 3300 XL Proximitor® Sensor, providing an output voltage directly proportional to the distance between the probe tip and a conductive target.

Designed for both static (position) and dynamic (vibration) monitoring, this system is ideal for applications such as fluid-film bearing machines, Keyphasor® reference, and rotational speed measurement. Built to meet the API 670 4th edition standards, the 5-meter 3300 XL 8 mm system delivers exceptional accuracy, linearity, and temperature stability in even the most demanding industrial conditions.

With full interchangeability between all 3300 XL 8 mm probes, cables, and Proximitor sensors, the system eliminates the need for matched component calibration—simplifying setup and reducing maintenance time. It is also backward-compatible with legacy 3300 5 mm and 8 mm systems, making it a flexible upgrade for existing installations with tight mounting constraints.

Key Features:

• Complete 3300 XL 8 mm system: probe, extension cable, and Proximitor Sensor

• Accurate static and dynamic measurements using eddy current technology

• Complies with API 670 4th edition mechanical and performance standards

• Full interchangeability—no bench calibration required

• Backward-compatible with non-XL 3300 series components

• Ideal for vibration monitoring, Keyphasor®, and speed measurements

• Rugged, industry-proven design for harsh environments
