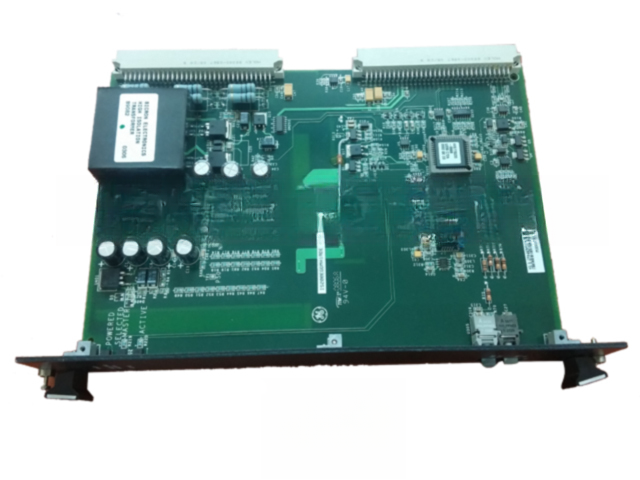

IS200EGDMH1A – Exciter Ground Detector Module

The GE IS200EGDMH1A Exciter Ground Detector Module is a specialized component engineered for use in GE Excitation Control Systems, specifically within EX2100 series applications. This module plays a crucial role in monitoring the insulation integrity of the exciter field circuit by detecting ground faults in real-time. Early detection of such faults is critical to preventing potential damage to the generator, exciter, and associated electrical systems.

Equipped with high-precision sensing circuitry, the IS200EGDMH1A continuously measures leakage currents and insulation resistance between the field winding and ground. In the event of a ground fault, the module promptly transmits a trip or alarm signal to the control system, allowing operators to take corrective action before catastrophic failures occur.

The IS200EGDMH1A is built on a rugged PCB platform designed to withstand the harsh operational industrial environments of power generation facilities. It offers high immunity to electrical noise, temperature fluctuations, and vibration, ensuring dependable performance over long operational lifespans. The module’s plug-in architecture simplifies installation, replacement, and maintenance, reducing downtime and increasing system reliability.

This GE ground detection module is widely used in gas turbines, steam turbines, and large generator excitation systems to maintain operational safety and compliance with international electrical standards. Its ability to detect both single and developing ground faults makes it an essential safeguard for continuous and reliable generator performance.

Key Features

• Designed for GE EX2100 Excitation Control Systems

• Monitors insulation integrity of exciter field windings

• Detects both single and developing ground faults

• Provides rapid trip or alarm signals for safety intervention

• High immunity to temperature variations, vibration, and EMI

• Rugged PCB construction for industrial-grade reliability

• Simple plug-in design for fast installation and maintenance

• Ensures compliance with global generator safety standards
