IS200JGNDG1AAA – GROUND TERMINATION CARD

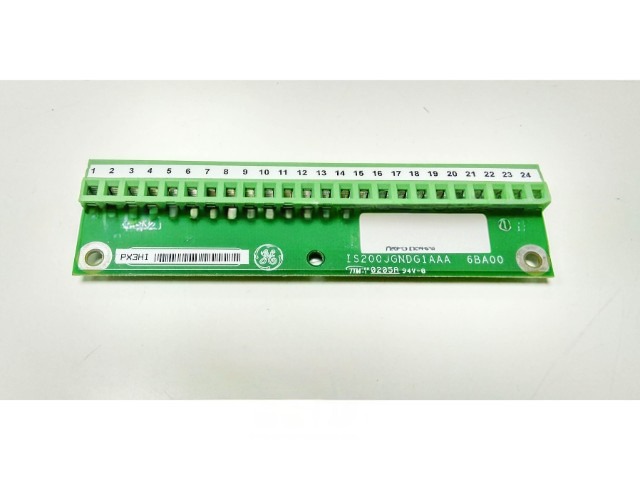

The IS200JGNDG1AAA is a Ground Termination Card developed by General Electric (GE) as part of the Mark VIe control system architecture. Its primary function is to offer a structured and safe grounding point for multiple signals, shields, and wiring interfaces used throughout the control system.

Designed to ensure electrical safety and signal integrity, the IS200JGNDG1AAA card plays a crucial role in dissipating stray voltages and protecting sensitive components from electrical interference, transient voltages, or electrostatic discharge (ESD). This is especially critical in complex turbine control environments where analog and digital signals coexist and are highly susceptible to noise and grounding issues.

The card is typically mounted in control cabinets or enclosures, providing a dedicated location for signal cable shields and return paths to ground. This helps maintain system stability and minimizes ground loops, which could otherwise affect control accuracy or lead to equipment failure.

Its rugged PCB layout and screw terminal connections are designed for long-term reliability and ease of installation. The card accommodates multiple cable connections and provides direct termination points for shielded cables, signal grounds, and power return lines. Each connection point is clearly labeled for efficient field wiring and troubleshooting.

The IS200JGNDG1AAA is often used in gas turbines, steam turbines, and industrial process control applications, where the need for a clean and centralized ground reference is critical. It supports the overall health of the Mark VIe system by improving noise immunity and maintaining compliance with industrial grounding standards.

Additionally, the card helps enhance diagnostic clarity, as it consolidates all grounding points in one location, allowing for streamlined testing and fault isolation. The proper implementation of grounding with this card significantly contributes to reducing signal distortion and improves the lifecycle and reliability of the entire control system.

Compatible with other GE terminal boards and I/O modules, the IS200JGNDG1AAA is a vital component for any turbine control solution requiring robust and centralized grounding infrastructure. Its use is recommended wherever high-density signal wiring or complex shielding needs to be managed within the Mark VIe framework.

Key Features:

• Centralized grounding point for signals and shield terminations

• Reduces electrical noise, improves signal integrity

• DIN-rail or panel mountable

• Rugged industrial design for long-term use

• Ensures compliance with grounding best practices

• Supports GE Mark VIe turbine control systems
