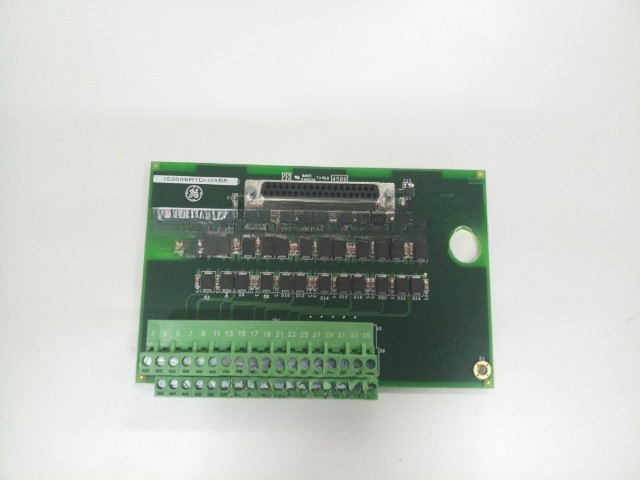

IS200SRTDH2ABA – DRL TERMBD RTD

The IS200SRTDH2ABA is a high-quality RTD terminal board engineered for integration within the GE Mark VIe turbine control system. Specifically designed for DIN rail mounting, this board enables seamless connection and accurate signal transmission from RTD sensors to the system’s I/O modules.

With support for up to 10 RTD inputs, the IS200SRTDH2ABA allows for precise monitoring of critical temperature points across power generation or industrial environments. It supports various RTD types—most commonly 100-ohm platinum sensors—and provides 3-wire or 4-wire configurations for accurate compensation of lead wire resistance.

The board features isolated input channels and built-in filtering for noise reduction and signal integrity, making it suitable for high-reliability applications where temperature monitoring is vital. It works in tandem with modules such as IS220PRTDH1A to process temperature data accurately and efficiently within the GE Mark VIe framework.

The IS200SRTDH2ABA’s modular DIN rail design ensures quick installation and simplified maintenance, with screw-type terminal blocks allowing for secure, organized field wiring. This design makes it ideal for retrofits, upgrades, or new system installations where robust temperature monitoring is required.

Built with GE’s reliability standards, this terminal board plays a crucial role in plant safety, equipment protection, and operational efficiency by enabling accurate and consistent temperature data collection.

Key Features:

• Supports up to 10 RTD sensor inputs

• DIN rail mountable for ease of installation

• 3-wire and 4-wire RTD input configurations

• Designed for use in GE Mark VIe systems

• Built-in signal isolation and noise filtering

• Compatible with IS220PRTDH1A and related I/O modules

• Secure field wiring through screw terminals

• Ideal for turbine and industrial temperature monitoring applications
