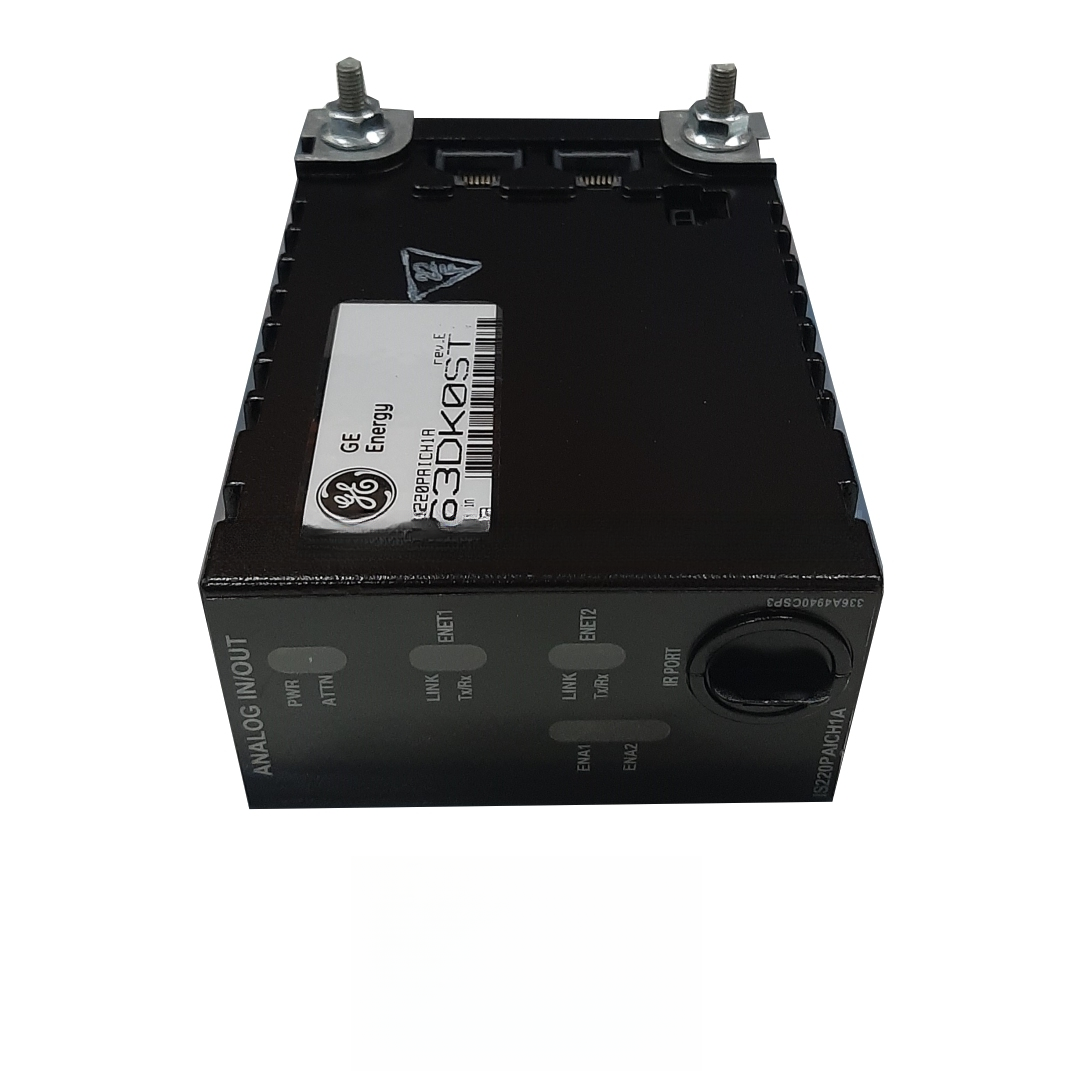

IS220PAICH1A, REV E – Analog I/O Terminal Board

The IS220PAICH1A REV E is an advanced Analog Input/Output (I/O) Module tailored for integration into the GE Mark VIe control system. It serves as a critical interface between field-level analog instrumentation and the control system, offering high accuracy, reliability, and efficient signal processing in industrial automation and turbine control applications.

This module is engineered to receive a range of analog input signals, such as 4–20 mA current loops or 0–5 V voltage signals, from sensors and transmitters used throughout a power generation or process facility. Additionally, it supports analog outputs used for commanding actuators or transmitting feedback to external control elements.

As part of the GE Mark VIe I/O pack family, the IS220PAICH1A communicates over the IONet Ethernet network using deterministic data transfer protocols, which ensures high-speed performance and synchronization across distributed control elements. Its seamless integration with the Mark VIe architecture simplifies configuration, monitoring, and maintenance using ToolboxST software.

A key feature of the IS220PAICH1A is its onboard diagnostics, which continually monitor signal quality, health status, and communication integrity. These diagnostics support predictive maintenance strategies, helping users detect and resolve issues before they affect plant operations. Clear LED indicators provide a visual status of module health and connectivity.

The module’s hot-swappable design allows for in-service replacement without requiring system shutdowns, ensuring maximum uptime and operational continuity. It interfaces directly with terminal boards that provide signal termination, cold junction compensation (for thermocouples), and loop power for field transmitters.

Built to operate reliably in harsh industrial environments, the IS220PAICH1A is resistant to vibration, temperature fluctuations, and electrical interference. This makes it ideal for applications in steam and gas turbines, auxiliary systems, and process automation where accurate analog data handling is essential.

By offering precise signal conversion and flexible configuration options, the IS220PAICH1A helps ensure stable, safe, and efficient control system operation across a wide range of industries.

Key Features:

• Designed for GE Mark VIe turbine and process control systems

• Supports multiple analog input and output signal types

• Input ranges: 4–20 mA, 0–5 V

• High-speed IONet communication interface

• Compatible with ToolboxST software for configuration and diagnostics

• Onboard health and signal monitoring

• LED indicators for quick status reference

• Hot-swappable for uninterrupted operations

• Reliable operation in harsh industrial environments

• Interfaces with thermocouples and transmitters via terminal boards
