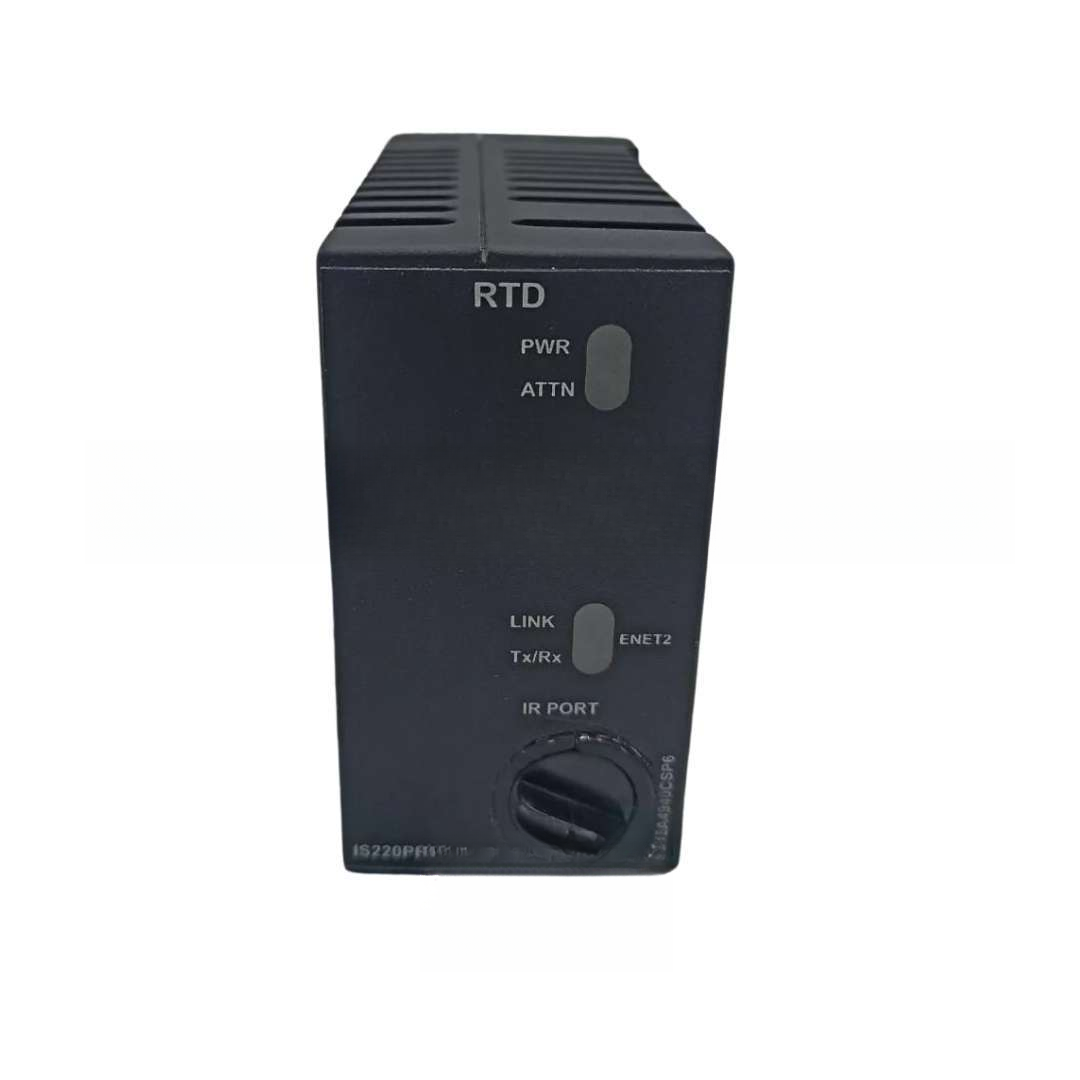

IS220PRTDH1A, REV G – Resistance Temperature Device

The IS220PRTDH1A, REV G is a Resistance Temperature Device (RTD) input module developed for integration with the GE Mark VIe control system. It provides accurate, real-time acquisition of temperature data from RTD sensors, ensuring that turbines and industrial systems operate within safe and efficient limits.

This module supports multiple RTD inputs, making it capable of monitoring various critical points across turbines, generators, and process equipment. With precision signal conditioning and galvanic isolation, the IS220PRTDH1A guarantees high-quality data while protecting the system against electrical noise and interference—factors commonly present in demanding industrial environments.

The REV G version of this module incorporates enhanced diagnostics, LED indicators, and fault detection features, allowing operators to monitor both the health of the module and the accuracy of incoming signals. These features simplify troubleshooting and reduce downtime during maintenance.

Thanks to its hot-swappable architecture, the IS220PRTDH1A can be serviced or replaced without interrupting turbine operations, an essential capability for mission-critical applications in power generation, oil & gas, and heavy process industries. Its robust design enables it to withstand vibration, extreme temperatures, and harsh site conditions, ensuring consistent reliability over long-term use.

When deployed within a GE Mark VIe system, this module plays a central role in temperature-based protection schemes, providing operators with accurate readings required for combustion monitoring, generator protection, and thermal management. Its compatibility with both simplex and redundant configurations further enhances system availability and reliability.

By combining precision, rugged durability, and advanced diagnostics, the IS220PRTDH1A, REV G delivers dependable performance for temperature monitoring and turbine safety, making it a trusted solution in critical industrial environments.

Key Features:

• Specifically designed for GE Mark VIe control platforms

• Supports multiple RTD input channels for temperature monitoring

• High accuracy measurement with signal conditioning

• Provides channel-to-channel galvanic isolation for noise immunity

• Built-in diagnostics with LED status indicators

• Hot-swappable design for easy maintenance and minimal downtime

• Compatible with simplex and redundant configurations

• Rugged, industrial-grade construction for harsh operating environments

• Reliable performance in gas turbines, steam turbines, and process plants

• Long service life with advanced GE engineering
